主要特征
6.5",neodymium magnet,die cast aluminium basket mid-bass
95dB sensitivity in 1w/1m,100W power handing
49.55mm(2 inch),copper clad alumimium voice coil wire and glass fiber voice coil bobbin,can endure high temperature.
Great high quality sound and very powerful dynamism
The high sensitivity and low weight,optimal for line array sound system
规格
| 额定尺寸 | 6.5 | 寸 |
| 额定阻抗 | 8 | 欧 |
| 额定功率 | 100 | 瓦 |
| 灵敏度 | 95 | dB |

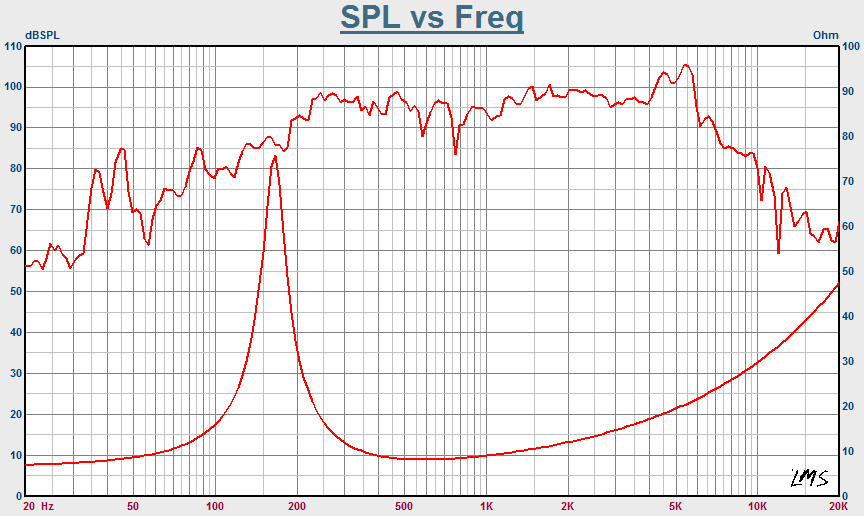

| 频响 | 165-6000 | Hz |
| 音圈直径 | 49.55 | mm |
| 磁钢尺寸 | Granular | mm |
| 最低共振频率 | 165 | Hz |
| 直流电阻 | 6.5 | 欧 |
| 机械品质因数 | 5.24 |
|
| 电品质因数 | 0.493 |
|
| 总品质因数 | 0.451 |
|
| 等效容积 | 2.1 | 升 |
| 力顺 | 69.25 | uM/N |
| 效率 | 1.83 | % |
| BL值 | 13.54 | T |
| 有效振动面积 | 14.527 | CM² |
| 盘架 | 铝 |
|
| 纸盘 | Kevlar loaded paper |
|
| 悬边 | 布 |
|
| 音圈材质 | Edgewound copper clad aluminium |
|
| 音圈骨架 | Glass fiber |
|
| 磁钢材料 | 铷铁硼 |
|
| 最大外径 | 186.5 | mm |
| 螺丝孔中心直径 | 172 | mm |
| 开孔直径 | 145 | mm |
| 高度 | 78 | mm |
| 净重 | 1.8 | Kg |
| 最大线性位移 | 1 | mm |
| 高音喉口直径 | / | 寸 |
