Nominal impedance
Power rating
Sensitivity(1w/1m)
Frequency range
Key Features

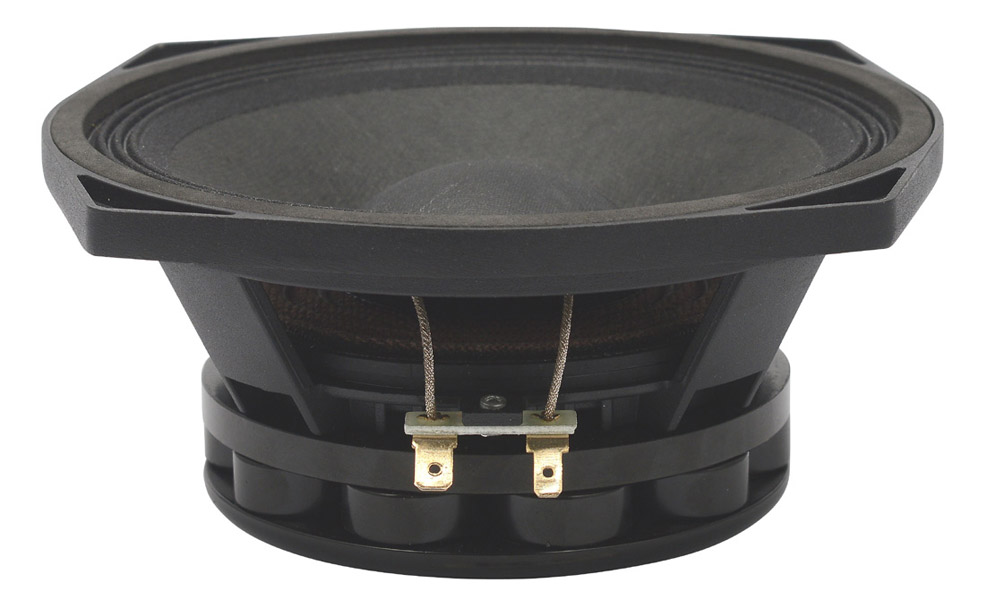

6.5",neodymium magnet,die cast aluminium basket mid-bass
95dB sensitivity in 1w/1m,100W power handing
49.55mm(2 inch),copper clad alumimium voice coil wire and glass fiber voice coil bobbin,can endure high temperature.
Great high quality sound and very powerful dynamism
The high sensitivity and low weight,optimal for line array sound system
Specifications
| Nominal diameter | 6.5 | inch |
| Nominal impedance | 8 | Ω |
| Power rating | 100 | W |
| Sensitivity(1w/1m) | 95 | dB |

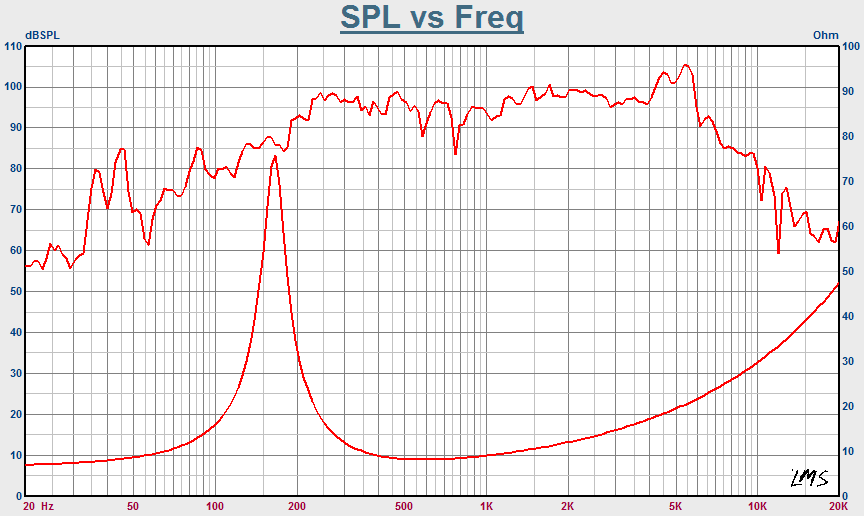

| Frequency range | 165-6000 | Hz |
| Voice coil diameter | 49.55 | mm |
| Magnet dimension | Granular | mm |
| Fs | 165 | Hz |
| Re(D.C.) | 6.5 | Ω |
| Qms | 5.24 |
|
| Qes | 0.493 |
|
| Qts | 0.451 |
|
| Vas | 2.1 | Ltr |
| Cms | 69.25 | uM/N |
| n.(%) | 1.83 | % |
| BL | 13.54 | T |
| Sd | 14.527 | CM² |
| Basket | Die cast Aluminium |
|
| Cone and dust cap | Kevlar loaded paper |
|
| Surround | Cloth-sealed |
|
| Voice coil wire | Edgewound copper clad aluminium |
|
| Voice coil bobbin | Glass fiber |
|
| Magnet material | Neodymium |
|
| Overall diameter | 186.5 | mm |
| Bolt circle diameter | 172 | mm |
| Cut out diameter | 145 | mm |
| Depth | 78 | mm |
| Net weight | 1.8 | Kg |
| X max | 1 | mm |
| Throat diameter | / | inch |
